1.Voxxlr
用平板掃描，可掃描大物件，製作3D影像
http://www.voxxlr.com/

2.KinectFusion

3. Time-of-Flight Camera

利用紅外線反射掃描，以每一個像素掃描

4.點線面掃描
(點)
利用機械手臂掃描
優點:較精準
缺點:較耗時、沒效率

(線)雷射光掃描
利用雷射光掃描曲線再組合
缺點:需要掃描很多面

(面)轉物體360度掃描

5.binvox/viewvox

把3D兔子變成樂高積木

int xRes,yRes,zRes, bunny[][][], inside[][][], millis0;

float angleX=0, angleY=0, myScale=1;

void setup(){

  size(600,400,P3D);

  byte b[]=loadBytes("bunny40.mira");//("bunny80.mira");

  xRes=((b[8] &0x00FF)<<8)+(b[9] &0x00FF);

  yRes=((b[10]&0x00FF)<<8)+(b[11]&0x00FF);

  zRes=((b[12]&0x00FF)<<8)+(b[13]&0x00FF);

  myScale=0.3*width/float(xRes);

  bunny=new int[xRes][yRes][zRes]; inside=new int[xRes][yRes][zRes];

  for(int i=0;i<xRes*yRes*zRes;i++){

    int x=int(i/(yRes*zRes)), y=int(i/zRes)%yRes, z=i%zRes;

    bunny[x][y][z]=b[256+(xRes+yRes+zRes)*8+i];

  }

  for(int i=1;i<xRes-1;i++)

    for(int j=1;j<yRes-1;j++)

      for(int k=1;k<zRes-1;k++)

        if(bunny[i-1][j][k]!=0 && bunny[i+1][j][k]!=0 && bunny[i][j-1][k]!=0 && bunny[i][j+1][k]!=0

            && bunny[i][j][k-1]!=0 && bunny[i][j][k+1]!=0) inside[i][j][k]=1;

}

void draw(){

  println("fps: "+frameRate);

  background(128); noStroke();

  pointLight(128,255,128, width, height, height);

  directionalLight(30,30,30, 0,0,-1);

  directionalLight(40,40,40, 0,1,-1);

  translate(width/2,height/2,0);

  rotateX(-angleY);

  rotateY(angleX);

  rotateX(PI/2);

  scale(myScale);

  translate(-xRes,-yRes,-zRes);

  for(int i=0;i<xRes;i++){

    for(int j=0;j<yRes;j++){

      for(int k=0;k<zRes;k++){

        if(bunny[i][j][k]!=0 && inside[i][j][k]==0){

          pushMatrix();

          translate(2*i,2*j,2*k);

          box(2);

          popMatrix();

        }

      }

    }

  }

}

void mouseDragged(){

  angleX+=0.01*(mouseX-pmouseX);

  angleY+=0.01*(mouseY-pmouseY);

}

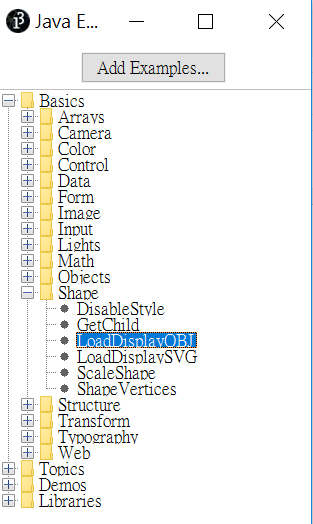

在程式碼內按Ctrl+K開啟火箭檔案資料夾
將三個檔案都拉進視窗

火箭

可根據滑鼠移動火箭方向

PShape bunny;

void setup(){
  size(400,400,P3D);
  bunny = loadShape("rocket.obj");
}
void draw(){
background(255,0,0);
lights();
translate(width/2,height/2);
rotateX(radians(mouseY));
rotateY(radians(mouseX));
shape(bunny,0,0);

}
